HT6012 Datasheet - Holtek Semiconductor Inc

Encoders

HT6012 Features

* Operating voltage: 2.4V~12V Low power and high noise immunity CMOS technology Low standby current Minimum transmission word - Four words for TE trigger - One word for Data trigger

* Built-in oscillator needs only 5% resistor Easy interface with an RF

HT6012 General Description

The 312 encoders are a series of CMOS LSIs for remote control system applications. They are capable of encoding 12 bits of information which consists of N address bits and 12-N data bits. Each address/data input is externally trinary programmable if bonded out. They are otherwise set floating intern.

HT6012 Datasheet (124.54 KB)

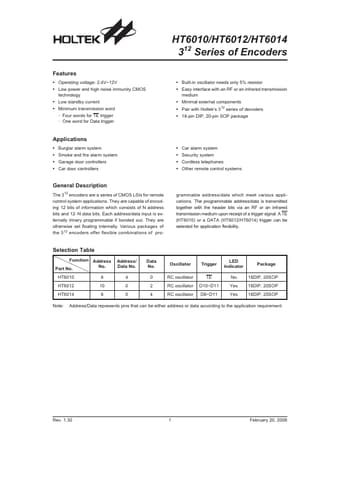

HT6012 Datasheet Preview — Preview of HT6012 PDF

Datasheet Details

Part number:

HT6012

Manufacturer:

Holtek Semiconductor Inc

File Size:

124.54 KB

Description:

Encoders.
