HT82V733 - 240mA Audio Power Amp

Datasheet Summary

Description

HT82V733 is an integrated class AB mono speaker driver contained in an SOP-8 package.

The device is fabricated in a CMOS process and has been primarily developed for portable digital audio applications.

O U T N A u d In V R E .

Features

  • High signal-to-noise ratio.
  • High slew rate.
  • Low distortion.
  • Large output voltage swing.
  • Excellent power supply ripple rejection.
  • Low power consumption.
  • Short-circuit elimination.
  • Wide temperature operating range.
  • No switch ON/OFF clicks.
  • Low standby current.
  • Power off control.
  • Direct drive speaker.
  • 8-pin DIP/SOP package General.

📥 Download Datasheet

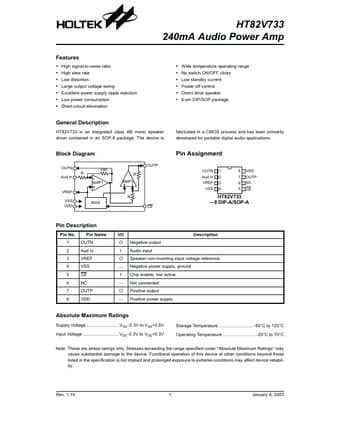

Datasheet preview – HT82V733
