HT9170 - DTMF Receiver

Description

The HT9170 series are Dual Tone Multi Frequency (DTMF) receivers integrated with digital decoder and bandsplit filter functions.

The H T 9 1 7 0 B a nd H T 9 1 7 0 D t y p es s u p p l y power-down mode and inhibit mode operations.

Features

  • Operating voltage: 2.5V~5.5V Minimal external components No external filter is required Low standby current (on power down mode) Excellent performance.
  • Tristate data output for mC interface 3.58MHz crystal or ceramic resonator 1633Hz can be inhibited by the INH pin HT9170B: 18-pin DIP package HT9170D: 18-pin SOP package General.

📥 Download Datasheet

Datasheet Details

Part number HT9170
Manufacturer Holtek Semiconductor Inc
File Size 124.62 KB
Description DTMF Receiver
Datasheet download datasheet HT9170 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HT9172 DTMF Receiver Holtek Semiconductor
HT9142 FM IF Detector Holtek Semiconductor
HT91808 96kHz Stereo ADC Heroic
HT9020 Call Progress Tone Decoder & ABR Controller Holtek Semiconductor
HT9020B Call Progress Tone Detector Holtek Semiconductor

Other Datasheets by Holtek Semiconductor Inc

Part Number Description
HT9170B DTMF Receiver
HT9170D DTMF Receiver
HT9011 FM IF Detector
HT9015 RF Single Chip for Cordless Phone
HT9032 Calling Line Identification Receiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

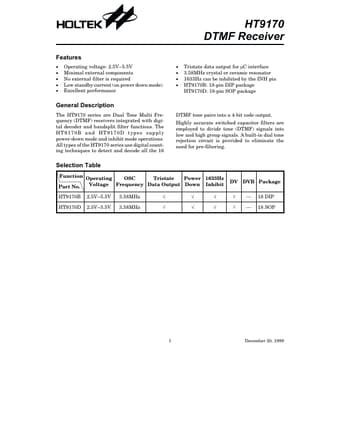

HT9170 DTMF Receiver Features · · · · · Operating voltage: 2.5V~5.5V Minimal external components No external filter is required Low standby current (on power down mode) Excellent performance · · · · Tristate data output for mC interface 3.58MHz crystal or ceramic resonator 1633Hz can be inhibited by the INH pin HT9170B: 18-pin DIP package HT9170D: 18-pin SOP package General Description The HT9170 series are Dual Tone Multi Frequency (DTMF) receivers integrated with digital decoder and bandsplit filter functions. The H T 9 1 7 0 B a nd H T 9 1 7 0 D t y p es s u p p l y power-down mode and inhibit mode operations. All types of the HT9170 series use digital counting techniques to detect and decode all the 16 DTMF tone pairs into a 4-bit code output.
