HT9200

DTMF Generators

HT9200 Features

* Operating voltage: 2.0V~5.5V

* Serial mode for the HT9200A

* Serial/parallel mode for the HT9200B

* Low standby current

* Low total harmonic distortion

* 3.58MHz crystal or ceramic resonator

* HT9200A: 8-pin DIP/SOP package HT9200B: 14-pin SOP package General Descript

HT9200 General Description

The HT9200A/B tone generators are designed for MCU interfaces. They can be instructed by a MCU to generate 16 dual tones and 8 single tones from the DTMF pin. The HT9200A provides a serial mode whereas the HT9200B contains a selectable serial/parallel mode interface for various applications such as.

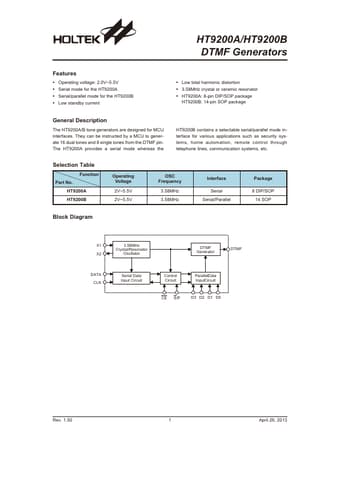

HT9200 Datasheet (117.42 KB)

Preview of HT9200 PDF

Datasheet Details

Part number:

HT9200

Manufacturer:

Holtek Semiconductor Inc

File Size:

117.42 KB

Description:

Dtmf generators.
