HT1130

4-bit Microcontroller

Holtek Semiconductor

HT1130 Features

* Operating voltage: 2.4V~3.3V

* 12 input lines

* Four output lines

* Five working registers

* Sound effect circuit

* 4K ´ 8 program ROM

* 128 ´ 4 bits data memory RAM size

* 32 ´ 4 segment LCD driver

* RC oscillator for system clock

* Halt feature reduces pow

HT1130 General Description

The HT1130 is a processor from Holtek s 4-bit stand alone single chip microcontroller range specifically designed for LCD product applications. The device is ideally suited for multiple
* Internal timer overflow interrupt
* External interrupt
* One level subroutine nesting
* 8-bit t.

HT1130 Datasheet (278.01 KB)

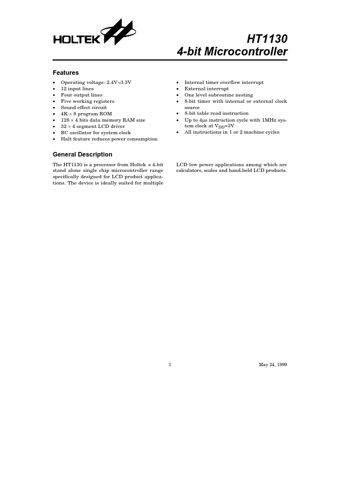

HT1130 Datasheet Preview — Preview of HT1130 PDF

Datasheet Details

Part number:

HT1130

Manufacturer:

Holtek Semiconductor

File Size:

278.01 KB

Description:

4-bit microcontroller.
