HT46C232 - A/D Type 8-Bit MCU

This page provides the datasheet information for the HT46C232, a member of the HT46R232 A/D Type 8-Bit MCU family.

Datasheet Summary

Description

The HT46R232/HT46C232 are 8-bit, high performance, RISC architecture microcontroller devices specifically designed for A/D applications that interface directly to analog signals, such as those from sensors.

Features

  • Operating voltage:.
  • Up to 0.5ms instruction cycle with 8MHz system clock fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V.
  • 40 bidirectional I/O lines (max. ).
  • 1 interrupt input shared with an I/O line.
  • Two 16-bit programmable timer/event counter with at VDD=5V.
  • 8-level subroutine nesting.
  • 8 channels 10-bit resolution A/D converter.
  • 4-channel 8-bit PWM output shared with four I/O lines.
  • Bit manipulation instruction.
  • 16-bit table read instruction.

📥 Download Datasheet

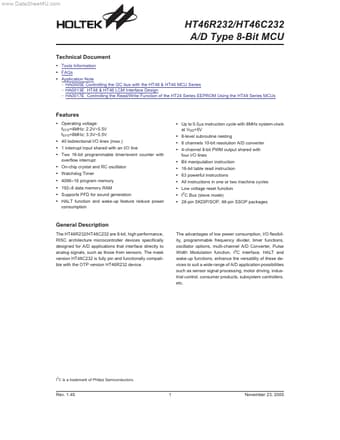

Datasheet preview – HT46C232

Datasheet Details

Part number HT46C232
Manufacturer Holtek Semiconductor
File Size 456.55 KB
Description A/D Type 8-Bit MCU
Datasheet download datasheet HT46C232 Datasheet
