HT7540-2

100mA Low Power LDO

HT7540-2 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to 24V)

* High output current : 100mA

* Output voltage accuracy: tolerance ±1%

* TO92, SOT89 and SOT23-5 packages Applications

* Battery-powered equipment

* Communic

HT7540-2 General Description

The HT75XX-2 series is a set of three-terminal low power high voltage implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 24V. They are available with several fixed output voltages ranging from 2.1V to 12.0V. CMOS technology ensures low voltage.

HT7540-2 Datasheet (381.25 KB)

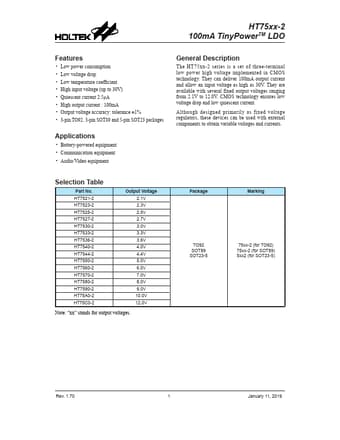

Preview of HT7540-2 PDF

Datasheet Details

Part number:

HT7540-2

Manufacturer:

Holtek Semiconductor

File Size:

381.25 KB

Description:

100ma low power ldo.
