HT7818 Datasheet, ldo equivalent, Holtek Semiconductor

PDF File Details

Part number: HT7818

Manufacturer: Holtek Semiconductor

File Size: 309.48KB

Download: 📄 Datasheet

Description: 500mA TinyPower LDO

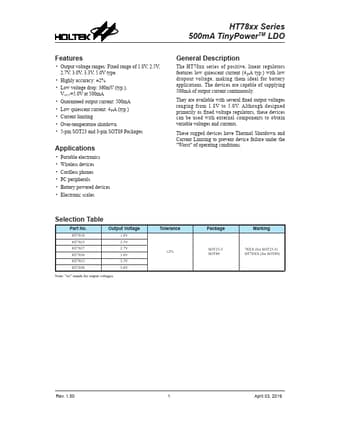

Datasheet Preview: HT7818 📥 Download PDF (309.48KB)

HT7818 Features and benefits


* Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 5.0V type.
* Highly accuracy: ±2%
* Low voltage drop: 360mV (typ.), VOUT=5.0V at 500mA <.

HT7818 Application


* Portable electronics
* Wireless devices
* Cordless phones
* PC peripherals
* Battery powered devic.

HT7818 Description

The HT78xx series of positive, linear regulators features low quiescent current (4mA typ.) with low dropout voltage, making them ideal for battery applications. The devices are capable of supplying 500mA of output current continuously. They are avail.

Image gallery

Page 2 of HT7818 Page 3 of HT7818
