7130-1 30mA Low Power LDO

The 71XX-1 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent curren.

7130-1 Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* High input voltage (up to +18V)

* Output voltage accuracy: tolerance ±2%

* TO-92, SOT-89 and SOT-25 package Applications

* Battery-powered equipment

* Communication equipment

* Audio/Vid

7130-1 Datasheet (81.73 KB)

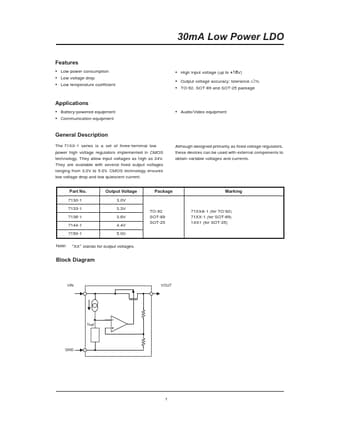

7130-1 Datasheet Preview — Preview of 7130-1 PDF

Datasheet Details

Part number:

7130-1

Manufacturer:

Holtek

File Size:

81.73 KB

Description:

30ma low power ldo.
