APS00B

High Resolution Magnetic Angular Position Sensor

APS00B Features

* Wide angular range allows measurements of ±90° without additional components make this device suitable for a variety of angular sensing applications; ±180° measurement is possible with external components

* Resolution capability of less than 0.05° helps improve overall system accuracy

APS00B General Description

Honeywell’s APS00B High Resolution Magnetic Angular Position Sensor IC (Integrated Circuit) is a miniature surface mount device for angular or rotary displacement designed for magnetic saturating field sensing. The APS00B creates an analog output voltage that varies with the direction of the magneti.

APS00B Datasheet (699.96 KB)

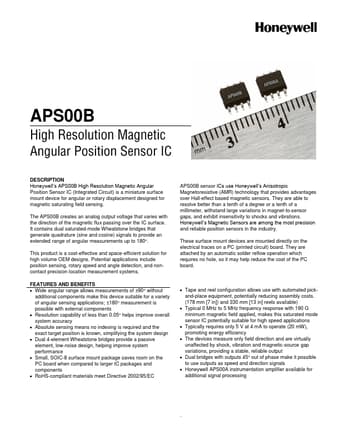

Preview of APS00B PDF

Datasheet Details

Part number:

APS00B

Manufacturer:

Honeywell

File Size:

699.96 KB

Description:

High resolution magnetic angular position sensor.
