HLC2701

Encoder Detector

HLC2701 Features

* Side-looking plastic package

* TTL/LSTTL/CMOS compatible

* Inverting logic output

* Linear or rotary encoder applications

* Resolution to 0.009 in.(.229 mm)

* Sensitivity versus temperature compensation

* Mechanically and spectrally matched

HLC2701 General Description

The HLC2701 detector is designed to sense speed and direction of mechanical motion. Applications include rotary and linear encoders; the device is especially well suited for the encoding function in an optical mouse. The detector is a monolithic IC, consisting of two narrow adjacent photodiodes, amp.

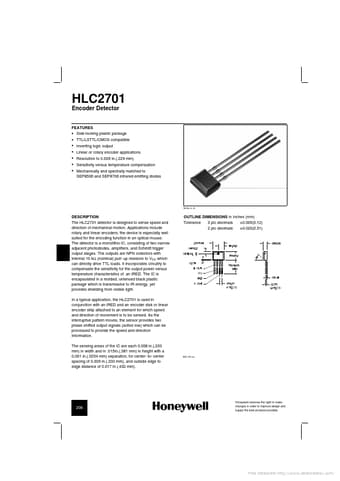

HLC2701 Datasheet (301.56 KB)

Preview of HLC2701 PDF

Datasheet Details

Part number:

HLC2701

Manufacturer:

Honeywell

File Size:

301.56 KB

Description:

Encoder detector.
