HOA1870-031 - Transmissive Sensor

Datasheet Summary

Description

The HOA1870 series consists of an infrared emitting diode facing an NPN silicon phototransistor (HOA1870-031) or photodarlington (HOA1870-033)encased in a black thermoplastic housing.

Detector switching takes place whenever an opaque object passes through the slot between emitter and detector.

Features

  • q Choice of phototransistor or photodarlington output q Accurate position sensing q 0.070 in [1.78 mm] slot width q 18.0 in [457 mm] min. 22 AWG UL 1007 wire leads.

📥 Download Datasheet

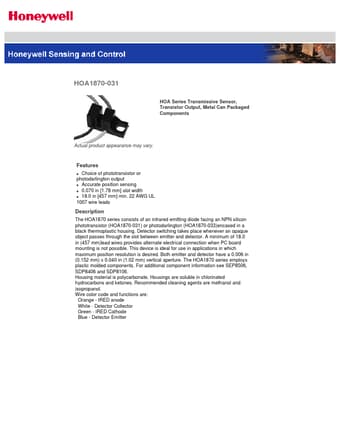

Datasheet preview – HOA1870-031

Datasheet Details

Part number HOA1870-031
Manufacturer Honeywell
File Size 27.30 KB
Description Transmissive Sensor
Datasheet download datasheet HOA1870-031 Datasheet
Additional preview pages of the HOA1870-031 datasheet.

📁 Similar Datasheet

  • HOA1397-1 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1397-2 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1397-31 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1397-32 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1405-1 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1405-2 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA149-1 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA-1870 - Transmissive Sensor (Honeywell Sensing)
  • HOA708 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA708-1 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
Other Datasheets by Honeywell

Full PDF Text Transcription

Click to expand full text
HOA1870-031 HOA Series Transmissive Sensor, Transistor Output, Metal Can Packaged Components Actual product appearance may vary. Features q Choice of phototransistor or photodarlington output q Accurate position sensing q 0.070 in [1.78 mm] slot width q 18.0 in [457 mm] min. 22 AWG UL 1007 wire leads Description The HOA1870 series consists of an infrared emitting diode facing an NPN silicon phototransistor (HOA1870-031) or photodarlington (HOA1870-033)encased in a black thermoplastic housing. Detector switching takes place whenever an opaque object passes through the slot between emitter and detector. A minimum of 18.0 in (457 mm)lead wires provides alternate electrical connection when PC board mounting is not possible.
