HOA6972

Transmissive Optoschmitt Sensor

HOA6972 Features

* Direct TTL interface

* Buffer or inverting logic available

* Three device output options

* Four mounting configurations

* Choice of detector aperture

* 0.125 in.(3.18 mm) slot width DESCRIPTION The HOA696X/697X series consists of an infrared emittin

HOA6972 General Description

The HOA696X/697X series consists of an infrared emitting diode facing an Optoschmitt detector encased in a black thermoplastic housing. Detector switching takes place whenever an opaque object passes through the slot between emitter and detector. The photodetector consists of a photodiode, amplifier.

HOA6972 Datasheet (920.50 KB)

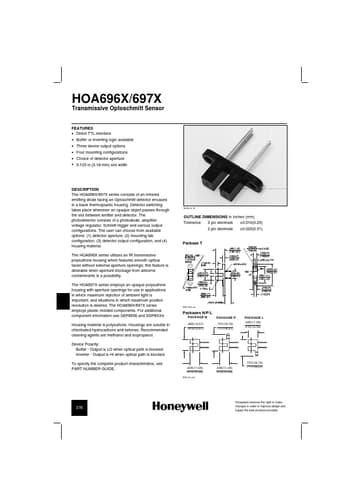

Preview of HOA6972 PDF

Datasheet Details

Part number:

HOA6972

Manufacturer:

Honeywell

File Size:

920.50 KB

Description:

Transmissive optoschmitt sensor.
