HOA7720 Datasheet - Honeywell

HOA7720 - Connectorized Transmissive Optoschmitt Sensor

The HOA7720/7730 Series consists of an infrared emitting diode facing an Optoschmitt detector encased in a black thermoplastic housing.

The photodetector consists of a photodiode, amplifier, voltage regulator and Schmitt trigger with either of two output configurations: Totem pole (HOA7720-M11) Open

HOA7720 Features

* Direct TTL interface No interface circuits required Inverting logic Two output options High resolution 3.00 mm [0.118] slot width Integral 3-pin connector POTENTIAL APPLICATIONS Industrial: Flag presence/absence detection Edge detection Rotary/linear encoders Medical: Edge sensing for labels and pa

HOA7720-Honeywell.pdf

Preview of HOA7720 PDF

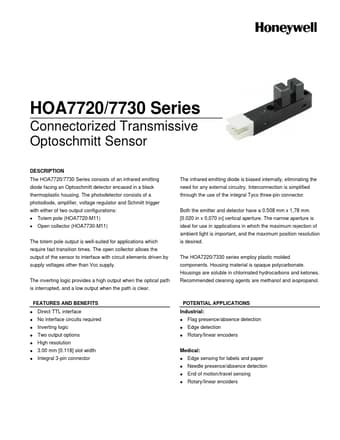

HOA7720 Datasheet Preview Page 2 HOA7720 Datasheet Preview Page 3
