HOA7720-M11, HOA7720 Datasheet - Honeywell

HOA7720-M11 Connectorized Transmissive Optoschmitt Sensor

The HOA7720/7730 Series consists of an infrared emitting diode facing an Optoschmitt detector encased in a black thermoplastic housing. The photodetector consists of a photodiode, amplifier, voltage regulator and Schmitt trigger with either of two output configurations: Totem pole (HOA7720-M11) Open.

HOA7720-M11 Features

* Direct TTL interface No interface circuits required Inverting logic Two output options High resolution 3.00 mm [0.118] slot width Integral 3-pin connector POTENTIAL APPLICATIONS Industrial: Flag presence/absence detection Edge detection Rotary/linear encoders Medical: Edge sensing for labels and pa

HOA7720-Honeywell.pdf

This datasheet PDF includes multiple part numbers: HOA7720-M11, HOA7720. Please refer to the document for exact specifications by model.

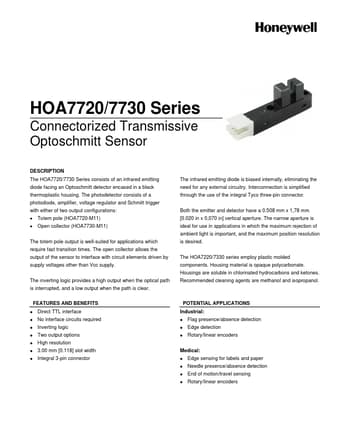

HOA7720-M11 Datasheet Preview Page 2 HOA7720-M11 Datasheet Preview Page 3

Datasheet Details

Part number:

HOA7720-M11, HOA7720

Manufacturer:

Honeywell

File Size:

392.09 KB

Description:

Connectorized transmissive optoschmitt sensor.

Note:

This datasheet PDF includes multiple part numbers: HOA7720-M11, HOA7720.
Please refer to the document for exact specifications by model.
