HOA7730-M11 - Connectorized Transmissive Optoschmitt Sensor

This page provides the datasheet information for the HOA7730-M11, a member of the HOA7720 Connectorized Transmissive Optoschmitt Sensor family.

Datasheet Summary

Description

The HOA7720/7730 Series consists of an infrared emitting diode facing an Optoschmitt detector encased in a black thermoplastic housing.

Features

  • Direct TTL interface No interface circuits required Inverting logic Two output options High resolution 3.00 mm [0.118] slot width Integral 3-pin connector.

📥 Download Datasheet

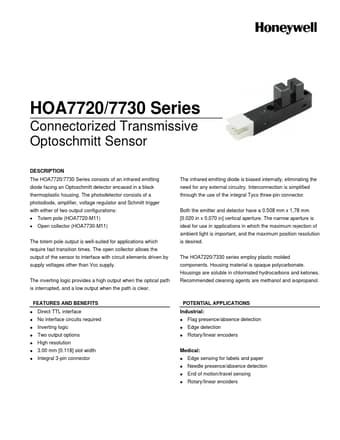

Datasheet preview – HOA7730-M11

Datasheet Details

Part number HOA7730-M11
Manufacturer Honeywell
File Size 392.09 KB
Description Connectorized Transmissive Optoschmitt Sensor
Datasheet download datasheet HOA7730-M11 Datasheet
Additional preview pages of the HOA7730-M11 datasheet.

📁 Similar Datasheet

  • HOA708 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA708-1 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA708-11 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA709-1 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA709-11 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA-1870 - Transmissive Sensor (Honeywell Sensing)
  • HOA1397-1 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1397-2 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1397-31 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
  • HOA1397-32 - (HOAxxx) Reflective (Honeywell Sensing and Controls)
Other Datasheets by Honeywell
  • HOA7730-M22 - Connectorized Transmissive Optoschmitt Sensor
  • HOA7730 - Connectorized Transmissive Optoschmitt Sensor
  • HOA7720 - Connectorized Transmissive Optoschmitt Sensor
  • HOA7720-M11 - Connectorized Transmissive Optoschmitt Sensor
  • HOA7720-M22 - Connectorized Transmissive Optoschmitt Sensor
  • HOA0149-001 - Infrared Reflective Sensor
  • HOA0708 - Reflective Sensor
  • HOA0709 - Reflective Sensor

Full PDF Text Transcription

Click to expand full text
HOA7720/7730 Series Connectorized Transmissive Optoschmitt Sensor DESCRIPTION The HOA7720/7730 Series consists of an infrared emitting diode facing an Optoschmitt detector encased in a black thermoplastic housing. The photodetector consists of a photodiode, amplifier, voltage regulator and Schmitt trigger with either of two output configurations: Totem pole (HOA7720-M11) Open collector (HOA7730-M11) The totem pole output is well-suited for applications which require fast transition times. The open collector allows the output of the sensor to interface with circuit elements driven by supply voltages other than Vcc supply. The inverting logic provides a high output when the optical path is interrupted, and a low output when the path is clear.
