JQC-3FF-S-Z - Subminiature High Power Relay

This page provides the datasheet information for the JQC-3FF-S-Z, a member of the JQC-3FF Subminiature High Power Relay family.

Datasheet Summary

Features

  • Extremely low cost.
  • SPST-NO & SPDT configuration.
  • Subminiature, standard PCB layout.
  • Sealed IP67 and Flux proof types available.

📥 Download Datasheet

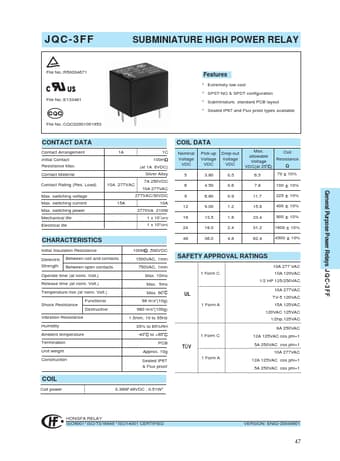

Datasheet preview – JQC-3FF-S-Z

Datasheet Details

Part number JQC-3FF-S-Z
Manufacturer Hongfa
File Size 292.24 KB
Description Subminiature High Power Relay
Datasheet download datasheet JQC-3FF-S-Z Datasheet
Additional preview pages of the JQC-3FF-S-Z datasheet.

📁 Similar Datasheet

  • JQC-3FF-S-Z - PCB Relay (TONGLING)
  • JQC-3FF-S-D - PCB Relay (TONGLING)
  • JQC-3FF-S-H - PCB Relay (TONGLING)
  • JQC-3FF - SUBMINIATURE POWER RELAYS (HONGMEI)
  • JQC-3F - Superminiature High Power Electromagnetic Relay (ETC)
  • JQC-3F - PCB Relay (HWE)
  • JQC-3FC - High power. Low coil power consumption (DBL)
  • JQC-3FG - SUBMINIATURE POWER RELAY (HF)
  • JQC-3Fxxx - Small-Scaly Power Hit The Electromagnetic Relay (SOKE)
  • JQC-16F - AUTOMOTIVE RELAY (ETC)
Other Datasheets by Hongfa

Full PDF Text Transcription

Click to expand full text
JQC-3FF SUBMINIATURE HIGH POWER RELAY General Purpose Power Relays JQC-3FF File No.:R50034671 File No.:E133481 File No.:CQC02001001953 Features * Extremely low cost * SPST-NO & SPDT configuration * Subminiature, standard PCB layout * Sealed IP67 and Flux proof types available CONTACT DATA Contact Arrangement Initial Contact Resistance Max. Contact Material Contact Rating (Res. Load) Max. switching voltage Max. switching current Max. switching power Mechanical life Electrical life 1A 1C 100m (at 1A 6VDC) Silver Alloy 7A 250VDC 10A 277VAC 10A 277VAC 277VAC/30VDC 15A 10A 2770VA 210W 1 x 107OPS 1 x 105OPS CHARACTERISTICS Initial Insulation Resistance Dielectric Between coil and contacts Strength Between open contacts Operate time (at nomi. Volt.) Release time (at nomi. Volt.
