CS100N03B4 Datasheet, mosfet equivalent, Huajing Microelectronics

CS100N03B4 Features

  • Mosfet l Trench FET Power MOSFET l Low ON Resistance(Rdson≤5.3mΩ) l Low Gate Charge (Typical Data:68nC) l Low Reverse transfer capacitances(Typical:300pF) l 100% Single Pulse avalanche energy

PDF File Details

Part number:

CS100N03B4

Manufacturer:

Huajing Microelectronics

File Size:

730.28kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS100N03 B4, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction

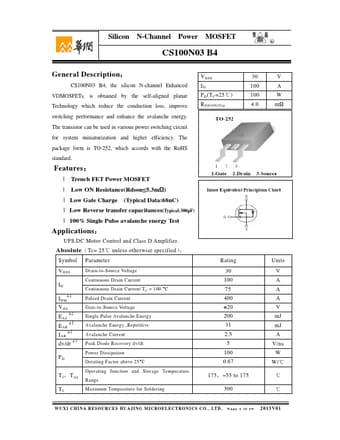

Datasheet Preview: CS100N03B4 📥 Download PDF (730.28kb)
Page 2 of CS100N03B4 Page 3 of CS100N03B4

CS100N03B4 Application

  • Applications UPS,DC Motor Control and Class D Amplifier. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter Rating VDSS ID I D
