CS50N20ANH Datasheet, mosfet equivalent, Huajing Microelectronics

CS50N20ANH Features

  • Mosfet l Fast Switching l Low ON Resistance(Rdson≤0.045Ω) l Low Gate Charge (Typical Data:150nC) l 100% Single Pulse avalanche energy Test Applications: Power switch circuit of electron ball

PDF File Details

Part number:

CS50N20ANH

Manufacturer:

Huajing Microelectronics

File Size:

417.81kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS50N20 ANH, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduct

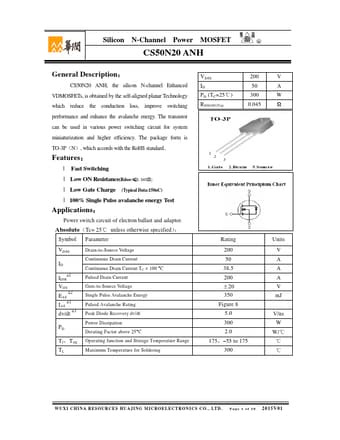

Datasheet Preview: CS50N20ANH 📥 Download PDF (417.81kb)
Page 2 of CS50N20ANH Page 3 of CS50N20ANH

CS50N20ANH Application

  • Applications Power switch circuit of electron ballast and adaptor. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1
