H7810 - 3-TERMINAL FIXED VOLTAGE REGULATOR

H7810 Description

Shantou Huashan Electronic Devices Co.,Ltd.3-TERMINAL FIXED VOLTAGE REGULATOR H 7810 .
The H7810 series of three terminal positive Regulators are available in the TO-220 package and with several fixed output voltages, making them useful.

H7810 Features

* Output current up to 1A Output Voltages of 10V Thermal Overload Protection Short Circuit Protection Output Transistor Safe Operating Area Protection Absolute Maximum Ratings Ta=25 VI Input Voltage (for VO=5V to 18V) 35V R JC Thermal Resistance Junction-Cases 5 /W R JA Thermal Resistance Juncti

H7810 Applications

* Each type employs internal current limiting, Thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulator, these devices can be used w

📥 Download Datasheet

Preview of H7810 PDF

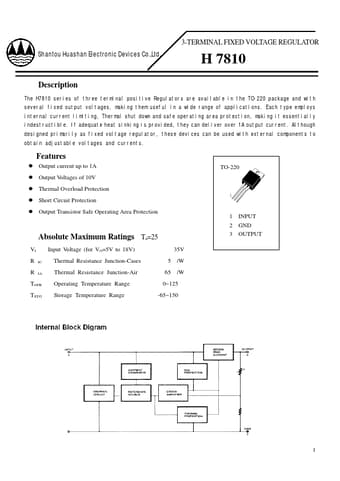

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
H7810
Manufacturer
Huashan
File Size
332.36 KB
Datasheet
H7810-Huashan.pdf
Description
3-TERMINAL FIXED VOLTAGE REGULATOR
