CST820 - High-Performance Self-Capacitive Touch Controller

📥 Download Datasheet

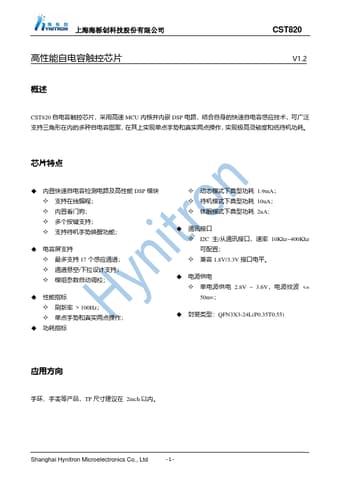

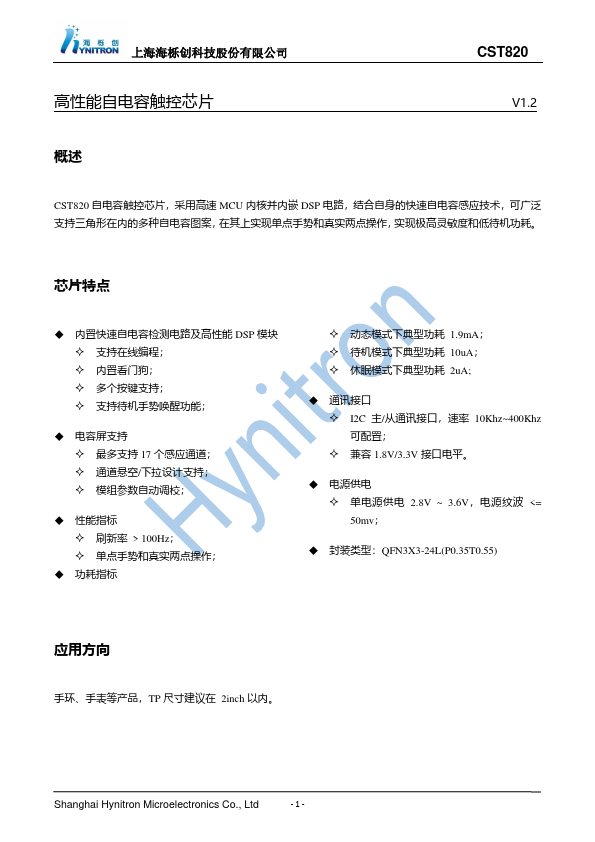

Datasheet preview – CST820

Datasheet Details

Part number CST820
Manufacturer Hynitron
File Size 1.51 MB
Description High-Performance Self-Capacitive Touch Controller
Datasheet download datasheet CST820 Datasheet
