27UF08 Datasheet - Hynix Semiconductor

27UF08_HynixSemiconductor.pdf

Preview of 27UF08 PDF
27UF08 Datasheet Preview Page 2 27UF08 Datasheet Preview Page 3

Datasheet Details

Part number:

27UF08

Manufacturer:

Hynix Semiconductor

File Size:

465.46 KB

Description:

Hy27uf08.

27UF08, HY27UF08

The HYNIX HY27(U/S)F(08/16)1G2M series is a 128Mx8bit with spare 4Mx8 bit capacity.

The device is offered in 1.8V Vcc Power Supply and in 3.3V Vcc Power Supply.

Its NAND cell provides the most cost-effective solution for the solid state mass storage market.

The memory is divided into blocks that can

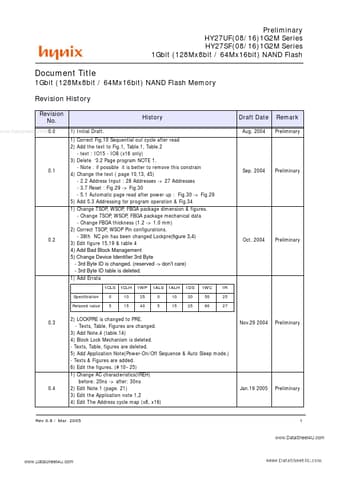

( DataSheet : www.DataSheet4U.com ) Preliminary HY27UF(08/16)1G2M Series HY27SF(08/16)1G2M Series 1Gbit (128Mx8bit / 64Mx16bit) NAND Flash Document Title 1Gbit (128Mx8bit / 64Mx16bit) NAND Flash Memory Revision History Revision No.

www.DataSheet4U.com0.0 History 1) Initial Draft.

1) Correct Fig.10 Sequential out cycle after read 2) Add the text to Fig.1, Table.1, Table.2 - text : IO15 - IO8 (x16 only) 3) Delete ‘3.2 Page program NOTE 1.

- Note : if possible it is better to remove this constra

27UF08 Features

* SUMMARY HIGH DENSITY NAND FLASH MEMORIES - Cost effective solutions for mass storage applications NAND INTERFACE - x8 or x16 bus width. - Multiplexed Address/ Data www.DataSheet4U.com - Pinout compatibility for all densities FAST BLOCK ERASE - Block erase time: 2ms (Typ.) STATUS REGISTER ELECTRONIC
