H9CCNNN8JTALAR - 8Gb LPDDR3

Name: H9CCNNN8JTALAR
SKU: H9CCNNN8JTALAR-1563563

Hynix

The H9CCNNN8JTALAR by Hynix is a 8Gb LPDDR3. Below is the official datasheet preview.

Datasheet Details

Part number	H9CCNNN8JTALAR
Manufacturer	Hynix
File Size	2.41 MB
Description	8Gb LPDDR3
Datasheet	H9CCNNN8JTALAR-Hynix.pdf

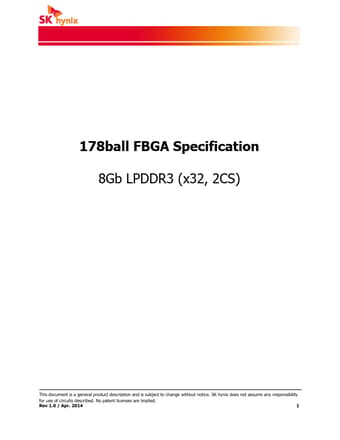

Additional preview pages of the H9CCNNN8JTALAR datasheet.

and is subject to change without notice.

[ FBGA ].
Operation Temperature - (-30)oC ~ 85oC.
Package - 178-ball FBGA - 11.0x11.5mm2, 1.00t, 0.65mm pitch - Lead & Halogen Free [ LPDDR3 ].
VDD1 = 1.8V (1.7V to 1.95V).
VDD2, VDDCA and VDDQ = 1.2V (1.14V to 1.30).
HSUL_12 interface (High Speed Unterminated Logic 1.2V).
Double data rate architecture for command, address and data Bus; - all control and address except CS_n, CKE latched at both rising and falling edge of the clock - CS_n, CKE latched at rising edge.
