AiP74AHC1G09, AiP74AHC1G09-I Datasheet - I-CORE

AiP74AHC1G09 Single 2-input And Gate

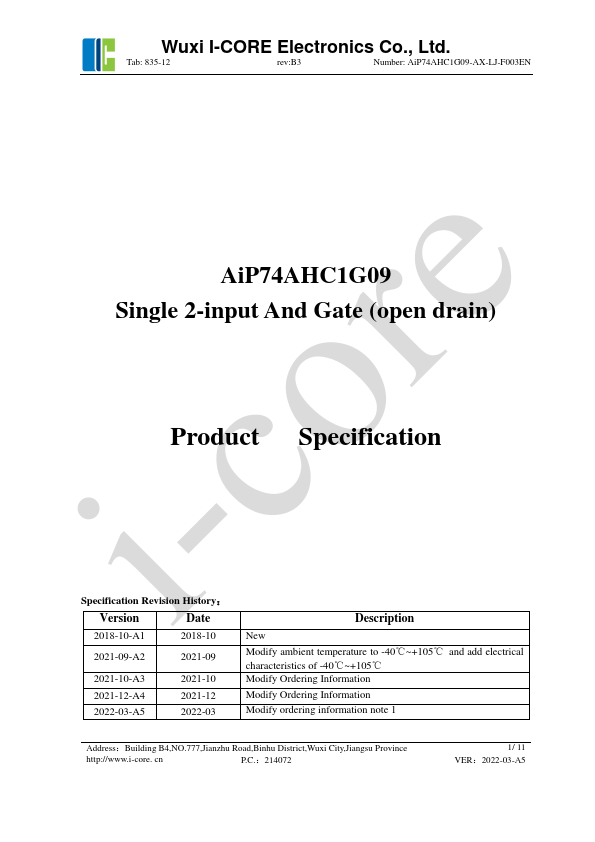

2018-10-A1 2018-10 New 2021-09-A2 2021-09 Modify ambient temperature to -40℃~+105℃ and add electrical characteristics of -40℃~+105℃ 2021-10-A3 2021-10 Modify Ordering Information 2021-12-A4 2021-12 Modify Ordering Information 2022-03-A5 2022-03 Modify ordering information note 1 Addr.

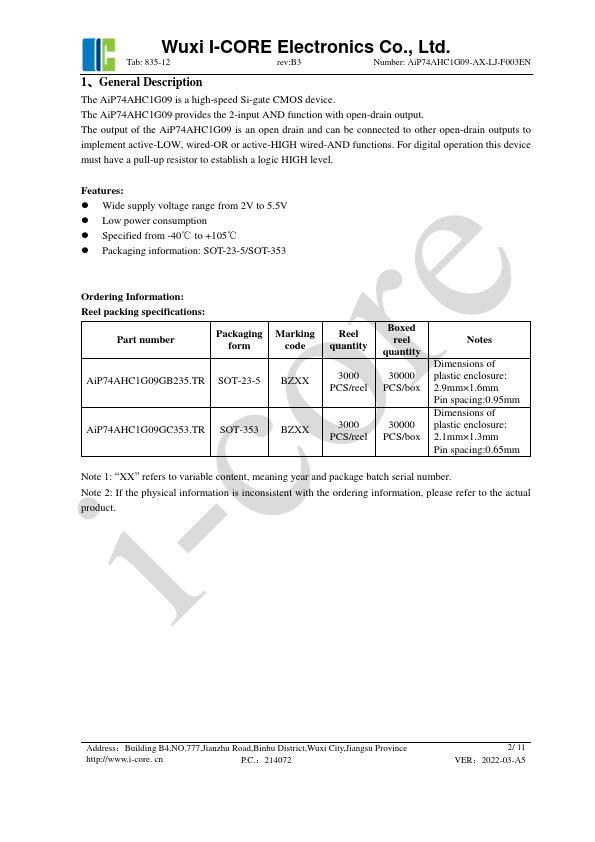

AiP74AHC1G09 Features

* Wide supply voltage range from 2V to 5.5V

* Low power consumption

* Specified from -40℃ to +105℃

* Packaging information: SOT-23-5/SOT-353 Ordering Information: Reel packing specifications: Part number Packaging Marking form code AiP74AHC1G09GB235.TR SOT-23-5 BZXX AiP74AHC1

AiP74AHC1G09-I-CORE.pdf

This datasheet PDF includes multiple part numbers: AiP74AHC1G09, AiP74AHC1G09-I. Please refer to the document for exact specifications by model.
AiP74AHC1G09 Datasheet Preview Page 2 AiP74AHC1G09 Datasheet Preview Page 3

Datasheet Details

Part number:

AiP74AHC1G09, AiP74AHC1G09-I

Manufacturer:

I-CORE

File Size:

817.87 KB

Description:

Single 2-input and gate.

Note:

This datasheet PDF includes multiple part numbers: AiP74AHC1G09, AiP74AHC1G09-I.
Please refer to the document for exact specifications by model.
