AT805 - 600mA Ultra Low Dropout Regulator

Datasheet Summary

Description

The AT805 is a high performance positive voltage regulator designed for use in applications requiring very low input voltage and very low dropout voltage at 600mA amps.

It operates with a VIN as low as 1.8V, with output voltage programmable as low as 0.8V.

Features

  • Typically 250mV Dropout @600mA Input Voltage Range: 1.8V to 5.5V Enable Function Over Current and Over Temperature Protection 5µA Quiescent Current in Shutdown P-CH Design to Reduce the Operation Current Full Industrial Temperature Range Adjustable Output Voltage Range 0.8V to 5V Output Voltage Accuracy ±2% Supply Current Typically 0.4mA Built-In Over Shoot Protection Circuit Ultra Fast Transient Response.

📥 Download Datasheet

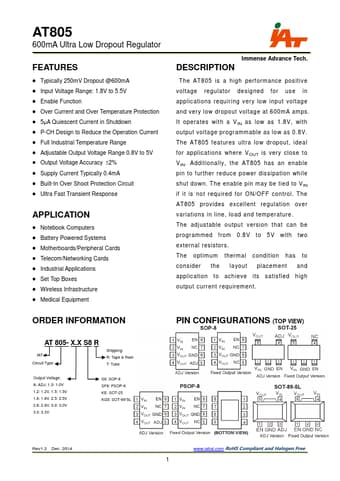

Datasheet preview – AT805

Datasheet Details

Part number AT805
Manufacturer IAT
File Size 3.19 MB
Description 600mA Ultra Low Dropout Regulator
Datasheet download datasheet AT805 Datasheet
Additional preview pages of the AT805 datasheet.

📁 Similar Datasheet

  • AT8025 - 2 x 8W + 15W single-chip 2.1-channel Class-D amplifier (ChipSourceTek)
  • AT80251G2D - 8/16-bit Microcontroller (Atmel)
  • AT8031 - 2.1/2.0 Channel Breakout Soundproof Class-D Amplifier (ChipSourceTek)
  • AT804 - PHASE CONTROL THYRISTOR (Power Semiconductors)
  • AT804S16 - PHASE CONTROL THYRISTOR (Power Semiconductors)
  • AT807 - PHASE CONTROL THYRISTOR (Power Semiconductors)
  • AT8083 - USB Mouse Controller (ATC)
  • AT80C31X2 - 8-bit CMOS Microcontroller (ATMEL Corporation)
  • AT80C32X2 - 8-bit Microcontroller (ATMEL)
  • AT80C5112 - 8-bit Microcontroller (ATMEL Corporation)
Other Datasheets by IAT

    Full PDF Text Transcription

    Click to expand full text
    AT805 600mA Ultra Low Dropout Regulator FEATURES Typically 250mV Dropout @600mA Input Voltage Range: 1.8V to 5.5V Enable Function Over Current and Over Temperature Protection 5µA Quiescent Current in Shutdown P-CH Design to Reduce the Operation Current Full Industrial Temperature Range Adjustable Output Voltage Range 0.8V to 5V Output Voltage Accuracy ±2% Supply Current Typically 0.4mA Built-In Over Shoot Protection Circuit Ultra Fast Transient Response APPLICATION Notebook Computers Battery Powered Systems Motherboards/Peripheral Cards Telecom/Networking Cards Industrial Applications Set Top Boxes Wireless Infrastructure Medical Equipment Immense Advance Tech.
