IBM25PPC405CR Embedded Controller

📥 Download Datasheet Datasheet Preview Page 1

Description

PowerPC 405CR Embedded Controller Data Sheet .
The IBM PowerPC 405CRTM is a 32-bit RISC embedded controller.

📥 Download Datasheet

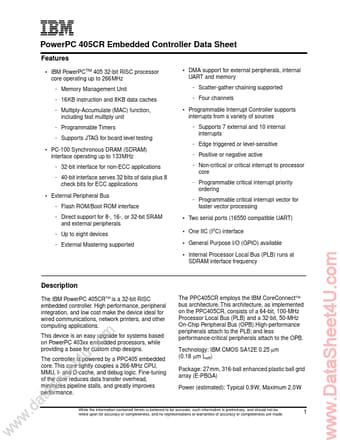

Preview of IBM25PPC405CR PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* IBM PowerPCTM 405 32-bit RISC processor core operating up to 266MHz - Memory Management Unit - 16KB instruction and 8KB data caches - Multiply-Accumulate (MAC) function, including fast multiply unit - Programmable Timers - Supports JTAG for board level testing
* PC-100 Synchronous

Applications

* - 40-bit interface serves 32 bits of data plus 8 check bits for ECC applications
* External Peripheral Bus - Flash ROM/Boot ROM interface - Direct support for 8-, 16-, or 32-bit SRAM and external peripherals - Up to eight devices - External Mastering supported
* DMA support for exter
