VDX2-6526 - DM&P Vortex86DX2 800MHz CPU Module

The VDX2-6526 by ICOP is a DM&P Vortex86DX2 800MHz CPU Module. Below is the official datasheet preview.

Datasheet Details

Part number	VDX2-6526
Manufacturer	ICOP
File Size	652.79 KB
Description	DM&P Vortex86DX2 800MHz CPU Module
Datasheet	VDX2-6526-ICOP.pdf

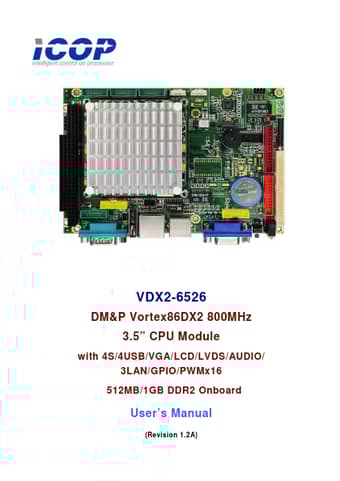

Additional preview pages of the VDX2-6526 datasheet.

VDX2-6526 Product details

Description

2 1.3 Specifications 3 1.4 Board Dimension 5 Chapter 2 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 Installation……………………………………………..6 Board Outline 6 Connectors Location 7 Connectors & Jumpers Summary 8 Pin Assignments & Jumper Settings 9 System Mapping 17 Watchdog Timer 22 GPIO 23 SPI Flash 24 PWM 25 Chapter 3 Driver Installation……………………………………26 Appendix ………………………………………………………………..27 A.TFT Flat Panel Data Output 27 B.TFT Flat Panel Support List 28 C.LVDS Flat Panel Support List 29 D.Flat

Features

800 MHz Vortex86DX2 SoC VGA, TFT/ LVDS LCD support up to 1280x1024 resolution 512MB/ 1GB DDR2 system memory 10/100/1000 Mbps Ethernet 4 USB 2.0 (host) Up to 4 serial ports Parallel port 16-bit GPIOs Audio Onboard 4MB SPI Flash Meet PC/104 stacking spec. 2 watchdog timer PWM 16~24 channels JTAG interface AMI BIOS Single voltage +5V DC Support operating temperature range of -10°C to +60°C The VDX2-6526 3.5” family of embedded controller is designed with backward compatibility in mind, to provi.
