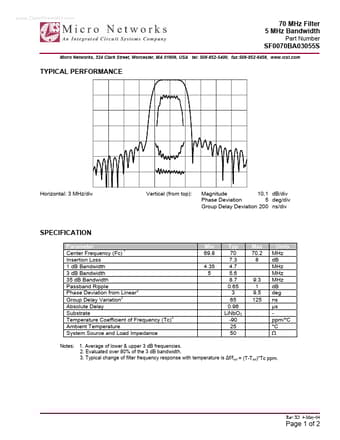

www.DataSheet4U.com 70 MHz Filter 5 MHz Bandwidth Part Number SF0070BA03055S Micro Networks, 324 Clark Street, Worcester, MA 01606, USA tel: 508-852-5400, fax:508-852-8456, www.icst.com TYPICAL PERFORMANCE Horizontal: 3 MHz/div Vertical (from top): Magnitude 10,1 dB/div Phase Deviation 5 deg/div Group Delay Deviation 200 ns/div SPECIFICATION Parameter Center Frequency (Fc) 1 Insertion Loss 1 dB Bandwidth 3 dB Bandwidth 35 dB Bandwidth Passband Ripple Phase Deviation from Linear2 Group Del.
