SF0150BA03095S Datasheet - ICS

SF0150BA03095S Filter

INPUT OUTPUT GROUND 10X 1.02 2.10 1 2 3 4 5 9X 1.80 NOTES: DIMENSIONS SHOWN ARE NOMINAL IN MILLIMETERS. ALL TOLERANCES ARE ±0.15MM EXCEPT OVERALL LENGTH AND WIDTH 10 9 8 7 6 1.91 7.62 Package Material: Body: Al2O3 ceramic Lid: Kovar, Ni plated Terminations: Au plating 0.5-1.0 um, over a 2-.

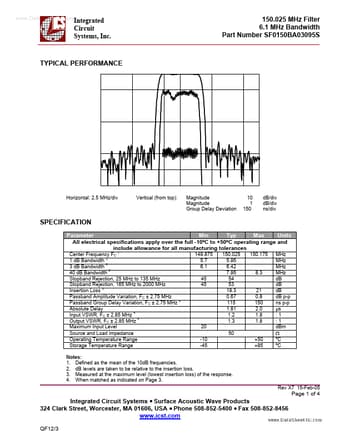

www.DataSheet4U.com Integrated Circuit Systems, Inc. 150.025 MHz Filter 6.1 MHz Bandwidth Part Number SF0150BA03095S TYPICAL PERFORMANCE Horizontal: 2.5 MHz/div Vertical (from top): Magnitude Magnitude Group Delay Deviation 10 1 150 dB/div dB/div ns/div SPECIFICATION Parameter Min Typ Max Units All electrical specifications apply over the full -10ºC to +50ºC operating range and include allowance for all manufacturing tolerances Center Frequency FC 1 1 dB Bandwidth 2 3 dB Bandwidth 2 40 .
