IC61LV256 - 32K x 8 Hight Speed SRAM

Datasheet Summary

Description

The ICSI IC61LV256 is a very high-speed, low power, 32,768-word by 8-bit static RAM.

high-performance CMOS technology.

This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 8 ns maximum.

Features

  • High-speed access times: -- 8, 10, 12, 15 ns.
  • Automatic power-down when chip is deselected.
  • CMOS low power operation -- 345 mW (max. ) operating -- 7 mW (max. ) CMOS standby.
  • TTL compatible interface levels.
  • Single 3.3V power supply.
  • Fully static operation: no clock or refresh required.
  • Three-state outputs.

📥 Download Datasheet

Datasheet preview – IC61LV256

Datasheet Details

Part number IC61LV256
Manufacturer ICSI
File Size 122.97 KB
Description 32K x 8 Hight Speed SRAM
Datasheet download datasheet IC61LV256 Datasheet
Additional preview pages of the IC61LV256 datasheet.

📁 Similar Datasheet

  • IC61C1024 - 128K x 8 HIGH-SPEED CMOS STATIC RAM (ICS)
  • IC61C1024L - 128K x 8 HIGH-SPEED CMOS STATIC RAM (ICS)
  • IC61C256AH - 32K x 8 HIGH-SPEED CMOS STATIC RAM (Integrated Circuit Solution)
  • IC61S25632D - 8Mb SyncBurst Pipelined SRAM (Integrated Circuit Solution)
  • IC61S25632T - 8Mb SyncBurst Pipelined SRAM (Integrated Circuit Solution)
  • IC61S25636D - 8Mb SyncBurst Pipelined SRAM (Integrated Circuit Solution)
  • IC61S25636T - 8Mb SyncBurst Pipelined SRAM (Integrated Circuit Solution)
  • IC61S51218D - 8Mb SyncBurst Pipelined SRAM (Integrated Circuit Solution)
  • IC61S51218T - 8Mb SyncBurst Pipelined SRAM (Integrated Circuit Solution)
  • IC61SF12832 - (IC61SF12832 / IC61SF12836) 128K x 32 Flow Through SyncBurst SRAM (Integrated Circuit Solution)
Other Datasheets by ICSI

Full PDF Text Transcription

Click to expand full text

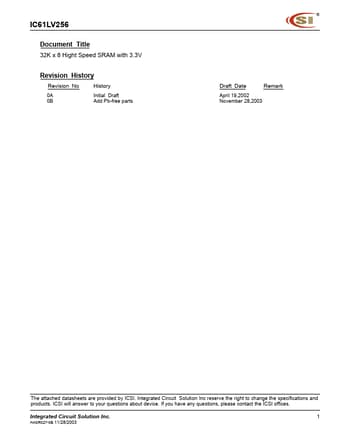

IC61LV256 Document Title 32K x 8 Hight Speed SRAM with 3.3V Revision History Revision No 0A 0B History Initial Draft Add Pb-free parts Draft Date April 19,2002 November 28,2003 Remark The attached datasheets are provided by ICSI. Integrated Circuit Solution Inc reserve the right to change the specifications and products. ICSI will answer to your questions about device. If you have any questions, please contact the ICSI offices. Integrated Circuit Solution Inc. AHSR027-0B 11/28/2003 1 IC61LV256 32K x 8 HIGH SPEED CMOS STATIC RAM FEATURES • High-speed access times: -- 8, 10, 12, 15 ns • Automatic power-down when chip is deselected • CMOS low power operation -- 345 mW (max.) operating -- 7 mW (max.) CMOS standby • TTL compatible interface levels • Single 3.
