MK9173-01 Video Genlock PLL

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com Integrated Circuit Systems, Inc.MK9173-01 MK9173-15 Video Genlock PLL General .
The MK9173-01 and MK9173-15 provide the analog PLL circuit blocks to implement a frequency multiplier.

📥 Download Datasheet

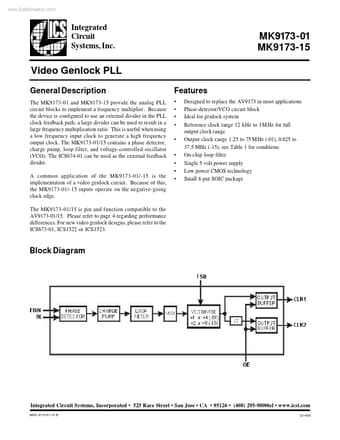

Preview of MK9173-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MK9173-01
Manufacturer
ICST
File Size
188.89 KB
Datasheet
MK9173-01_ICST.pdf
Description
Video Genlock PLL

Applications

* Phase-detector/VCO circuit block Ideal for genlock system Reference clock range 12 kHz to 1 M Hz for full output clock range Output clock range 1.25 to 75 M Hz (-01), 0.625 to 37.5 MHz (-15), see Table 1 for conditions On-chip loop filter Single 5 volt power supply Low power CMOS technology Small 8-
