F6503 Datasheet, Tx, IDT

F6503 Features

  • Tx
  • 14GHz to 16GHz operation
  • 8 radiation channels
  • 6-bit phase control
  • 6-bit gain control
  • 50ns typical gain settling time
  • 20ns typ

PDF File Details

Part number:

F6503

Manufacturer:

IDT

File Size:

156.80kb

Download:

📄 Datasheet

Description:

Common data link (cdl) tx. The F6503 is an 8-channel transmitter (TX) silicon IC designed using a SiGe BiCMOS process for CDL phased array applications. The cor

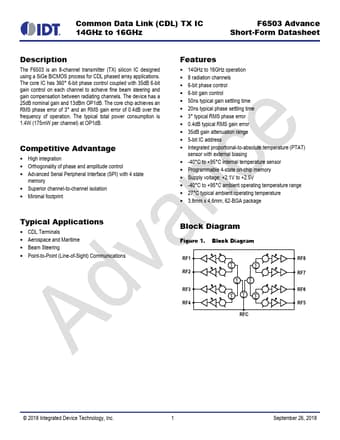

Datasheet Preview: F6503 📥 Download PDF (156.80kb)
Page 2 of F6503

F6503 Application

  • Applications The core IC has 360° 6-bit phase control coupled with 35dB 6-bit gain control on each channel to achieve fine beam steering and gain c
