IDT54FCT2257AT, IDT54FCT2257, FAST CMOS QUAD 2-INPUT MULTIPLEXER

Integrated Device Technology, Inc.FAST CMOS QUAD 2-INPUT MULTIPLEXER IDT54/74FCT157T/AT/CT/DT IDT54/74FCT257T/AT/CT/DT IDT54/74FCT2257T/AT/CT FEAT.
The FCT157T, FCT257T/FCT2257T are high-speed quad 2-input multiplex.

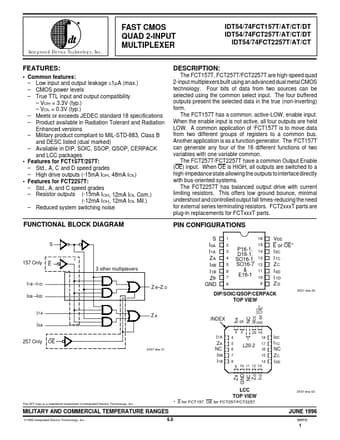

datasheet Preview Page 1 from Datasheet4u.com

IDT54FCT2257_IntegratedDeviceTechnology.pdf

IDT54FCT2257AT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT54FCT2257AT, IDT54FCT2257. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT54FCT2257AT, IDT54FCT2257

Manufacturer:

IDT

File Size:

135.56 KB

Description:

FAST CMOS QUAD 2-INPUT MULTIPLEXER

Note:

This datasheet PDF includes multiple part numbers: IDT54FCT2257AT, IDT54FCT2257.
Please refer to the document for exact specifications by model.

Features

* Common features:
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* Meets or exceeds JEDEC standard 18 specifications
* Product available
