IDT72T18105 - HIGH-SPEED TeraSync FIFO

IDT

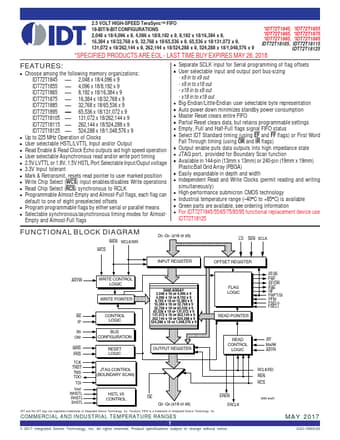

IDT72T18105 Datasheet Preview — Preview of IDT72T18105 PDF

Datasheet Details

Part number	IDT72T18105
Manufacturer	IDT
File Size	376.11 KB
Description	HIGH-SPEED TeraSync FIFO
Datasheet	IDT72T18105_IDT.pdf

IDT72T18105 Product details

Description

The IDT72T1845/72T1855/72T1865/72T1875/72T1885/72T1895/ 72T18105/72T18115/72T18125 are exceptionally deep, extremely high speed, CMOS First-In-First-Out (FIFO) memories with clocked read and write controls and a flexible Bus-Matching x18/x9 data flow. Flexible x18/x9 Bus-Matching on both read and write ports A user selectable MARK location for retransmit User selectable I/O structure for HSTL or LVTTL Asynchron

Features

Choose among the following memory organizations: IDT72T1845  2,048 x 18/4,096 x 9 IDT72T1855  4,096 x 18/8,192 x 9 IDT72T1865  8,192 x 18/16,384 x 9 IDT72T1875  16,384 x 18/32,768 x 9 IDT72T1885  32,768 x 18/65,536 x 9 IDT72T1895  65,536 x 18/131,072 x 9 IDT72T18105  131,072 x 18/262,144 x 9 IDT72T18115  262,144 x 18/524,288 x 9 IDT72T18125  524,288 x 18/1.
