IDT74FCT16652CT, IDT74FCT16652 Datasheet - IDT

IDT74FCT16652CT, IDT74FCT16652, FAST CMOS 16-BIT BUS TRANSCEIVER/REGISTERS

Integrated Device Technology, Inc.FAST CMOS 16-BIT BUS IDT54/74FCT16652T/AT/CT/ET TRANSCEIVER/ IDT54/74FCT162652T/AT/CT/ET REGISTERS .

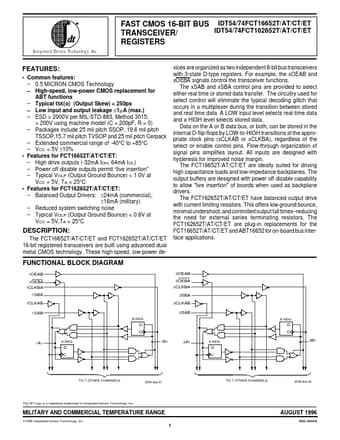

datasheet Preview Page 1 from Datasheet4u.com

IDT74FCT16652_IntegratedDeviceTechnology.pdf

IDT74FCT16652CT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74FCT16652CT, IDT74FCT16652. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT74FCT16652CT, IDT74FCT16652

Manufacturer:

IDT

File Size:

180.75 KB

Description:

FAST CMOS 16-BIT BUS TRANSCEIVER/REGISTERS

Note:

This datasheet PDF includes multiple part numbers: IDT74FCT16652CT, IDT74FCT16652.
Please refer to the document for exact specifications by model.

Features

* Common features:
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤1µA (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machi
