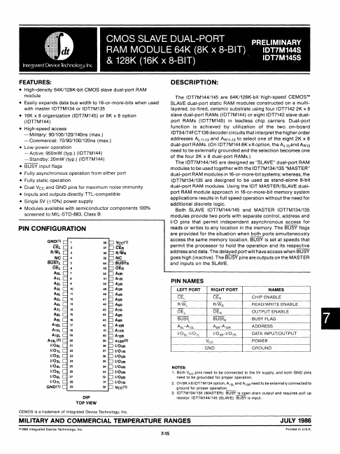

IDT7M144S Datasheet

Manufacturer: IDT

Datasheet Details

Part number	IDT7M144S
Datasheet	IDT7M144S-IDT.pdf
File Size	186.85 KB
Manufacturer	IDT
Description	CMOS Slave Dual-Port RAM Module

90/100/120/140ns (max.) -mercial: 70/90/100/120ns (max.) Low-power operation -Active: 950mW (typ.) (IDT7M144) -Standby:.

High-density 64K112BK-bit CMOS slave dual-port RAM module
Easily expands data bus width to 16-or-more-bits when used with master IDT7M134 or IDT7M135
16K x B organization (IDT7M145) or BK x B option (IDT7M144)
High-speed access
Military: 90/100/120/140ns (max.) -mercial: 70/90/100/120ns (max.)
Low-power operation -Active: 950mW (typ.) (IDT7M144) -Standby: 20mW (typ.) (IDT7M144)
BUSY input flags
Fully asynchronous operation from either port
Fully static operation
Dual Vee and GND pins for maximum noise immunity
