VT1100M

AM Video Mini Transmitter

VT1100M Features

* ee

* AM Video Transmission

* NTSC, PAL, SECAM Compatible

* Full Color Compatibility

* Direct Camera Mountable

* No In-field Electrical or Optical Adjustments Required

* Optional 24VAC Adapter Available for Direct Use with 24VAC Camera Power Supply.

VT1100M General Description

The IFS VT1101M series video mini-transmitter provides transmission of a fixed video signal using AM modulation on one multimode or single-mode fiber optic cable. The transmitter is direct camera mountable eliminating the use of coaxial cable at the camera connection and will fit in most camera hous.

VT1100M Datasheet (103.38 KB)

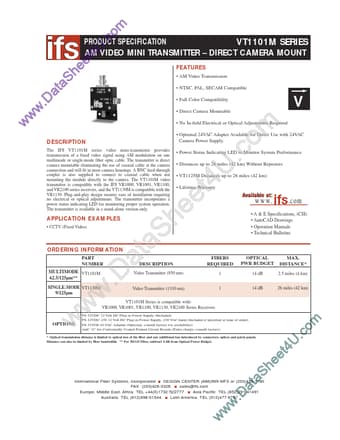

Preview of VT1100M PDF

Datasheet Details

Part number:

VT1100M

Manufacturer:

IFS

File Size:

103.38 KB

Description:

Am video mini transmitter.
