IK2102 Datasheet - IK Semicon

IK2102, LED Display Driver IC

LED Display Driver IC GENERAL .
The IK2102 is a common cathode type LED panel display driver with output size 4 digits x13 segments or 7 digits x 10 segments and addition key scan fu.

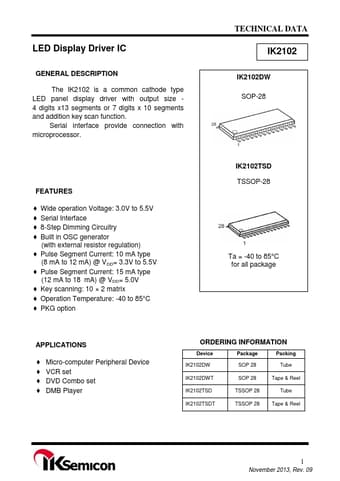

 datasheet Preview Page 1 from Datasheet4u.com

IK2102-IKSemicon.pdf

Preview of IK2102 PDF

Datasheet Details

Part number:

IK2102

Manufacturer:

IK Semicon

File Size:

2.43 MB

Description:

LED Display Driver IC

Features

*  Wide operation Voltage: 3.0V to 5.5V  Serial Interface  8-Step Dimming Circuitry  Built in OSC generator (with external resistor regulation)  Pulse Segment Current: 10 mA type (8 mA to 12 mA) @ VDD= 3.3V to 5.5V  Pulse Segment Current: 15 mA type (12 mA to 18 mA) @ VDD= 5.0V  Key scanning: 1

Applications

*  Micro-computer Peripheral Device  VCR set  DVD Combo set  DMB Player ORDERING INFORMATION Device Package Packing IK2102DW SOP 28 Tube IK2102DWT SOP 28 Tape & Reel IK2102TSD TSSOP 28 Tube IK2102TSDT TSSOP 28 Tape & Reel 1 November 2013, Rev. 09 PIN ASSIGNMENT IK2102 PIN LIST A
