IK3101 - Low Drop Regulator

Product Overview

IK Semicon

Datasheet Details

Part number	IK3101
Manufacturer	IK Semicon
File Size	348.33 KB
Description	Low Drop Regulator
Datasheet	IK3101 Datasheet

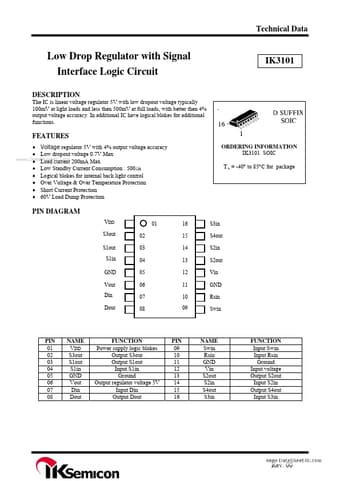

Additional preview pages of the IK3101 datasheet.

Product details

Description

The IC is linear voltage regulator 5V with low dropout voltage typically 100mV at light loads and less then 500mV at full loads, with better then 4% output voltage accuracy.

Features

Voltage regulator 5V with 4% output voltage accuracy.
Low dropout voltage 0.7V Max www. DataSheet4U. com.
Load current 200mA Max.
Low Standby Current Consumption : 500㎂.
Logical blokes for internal back light control.
Over Voltage & Over Temperature Protection.
Short Current Protection.
60V Load Dump Protection.
