IN16C1054 Datasheet - IK Semicon

IN16C1054 Quard Uart

IN16C1054 is a quad UART(Universal Asynchronous Receiver/Transmitter) with 256-byte FIFO supporting maximum communication speed of 5.3Mbps. It offers flow control function by hardware or software and signal lines which can open or close the Tx/Rx input/output when communicating by RS-422 or RS-485. .

IN16C1054 Features

* 4 Channel UART 3.3V Operation 5V Tolerant Inputs Pin-to-pin Compatible with Industry Standard SB16C554 with Additional Enhancements Up to 5.3 Mbps Baud Rate (Up to 85 MHz Oscillat

IN16C1054 Datasheet (1.06 MB)

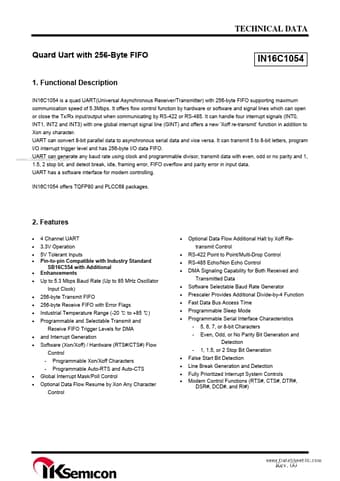

Preview of IN16C1054 PDF

Datasheet Details

Part number:

IN16C1054

Manufacturer:

IK Semicon

File Size:

1.06 MB

Description:

Quard uart.
