BT8028

SIMPLE MELODY GENERATOR

BT8028 Features

* 127-note ROM memory

* 1.3V to 3.3V power supply and low power consumption

* RC oscillator on chip

* One shot or level hold mode

* Sound range: 4 octaves, 2 series

* Tempo: 16 kinds (prestolargo)

* Direct piezo drive FUNCTIONS

* Soluti

BT8028 General Description

The BT8028 is a CMOS LSI chip which electronically plays a prearranged melody. Selection of melody start signal is possible by mask option: orders specification suffix "L" indicate Level Hold Mode, and suffix "S" indicate One Shot Mode. The Universal version (as One Shot or Level Hold Mode) is poss.

BT8028 Datasheet (210.05 KB)

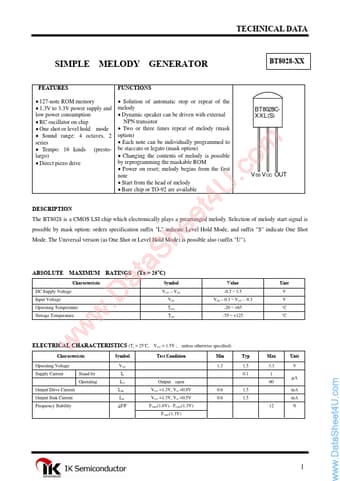

Preview of BT8028 PDF

Datasheet Details

Part number:

BT8028

Manufacturer:

IK Semiconductor

File Size:

210.05 KB

Description:

Simple melody generator.
