IN74HC04A Datasheet - IK Semiconductor

IN74HC04A Hex Inverter

TECHNICAL DATA Hex Inverter High-Performance Silicon-Gate CMOS IN74HC04A The IN74HC04A is identical in pinout to the LS/ALS04. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1.0 µA High Noise Immunity Characteristic of CMOS Devices ORDERING INFORMATION IN74HC04AN Pl.

IN74HC04A Datasheet (192.85 KB)

Preview of IN74HC04A PDF

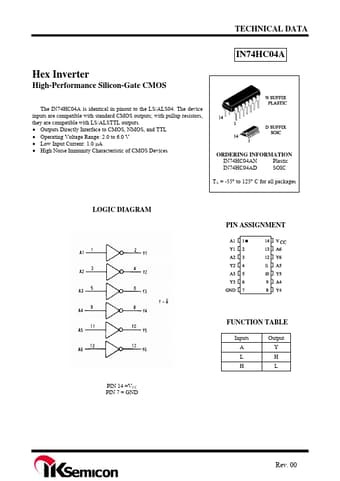

IN74HC04A Datasheet Preview Page 2 IN74HC04A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC04A

Manufacturer:

IK Semiconductor

File Size:

192.85 KB

Description:

Hex inverter.
