IN74HC10A Triple 3-Input NAND Gate

TECHNICAL DATA Triple 3-Input NAND Gate High-Performance Silicon-Gate CMOS IN74HC10A The IN74HC10A is identical in pinout to the LS/ALS10. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1.0 µA High Noise Immunity Characteristic of CMOS Devices ORDERING INFORMATION IN74HC1.

IN74HC10A Datasheet (125.20 KB)

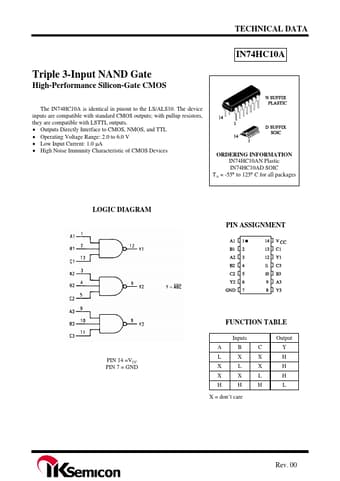

Preview of IN74HC10A PDF
IN74HC10A Datasheet Preview Page 2 IN74HC10A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC10A

Manufacturer:

IK Semiconductor

File Size:

125.20 KB

Description:

Triple 3-input nand gate.
