IN74HC123A Dual Monostable Multivibrator with Reset

TECHNICAL DATA IN74HC123A Dual Retriggerable Monostable Multivibrator The IN74HC123A is identical in pinout to the LS/ALS123. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. There are two trigger inputs, A INPUT (negative edge) and B INPUT (positive edge). These inputs are valid for rising/falling signals. The device may also be triggered by using the CLR input (positiveedge) because of the Schmitt-trigger input; a.

IN74HC123A Datasheet (250.34 KB)

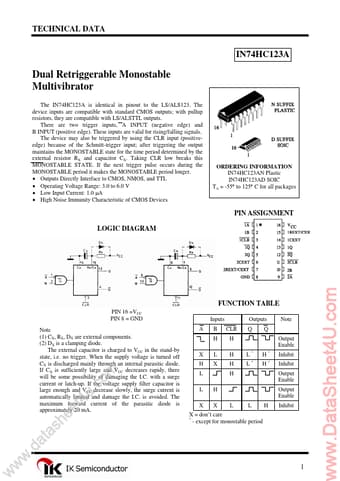

Preview of IN74HC123A PDF
IN74HC123A Datasheet Preview Page 2 IN74HC123A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC123A

Manufacturer:

IK Semiconductor

File Size:

250.34 KB

Description:

Dual monostable multivibrator with reset.
