IN74HC132A Datasheet - IK Semiconductor

IN74HC132A Quad 2-Input NAND Schmitt-Trigger Inverter

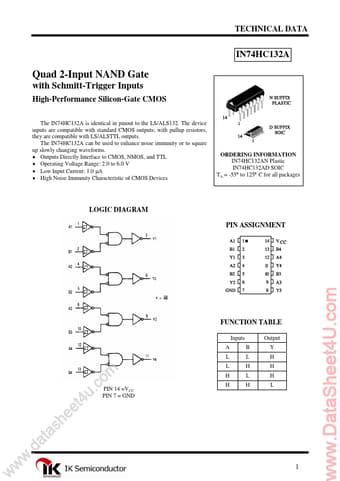

TECHNICAL DATA IN74HC132A Quad 2-Input NAND Gate with Schmitt-Trigger Inputs High-Performance Silicon-Gate CMOS The IN74HC132A is identical in pinout to the LS/ALS132. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. The IN74HC132A can be used to enhance noise immunity or to square up slowly changing waveforms. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 .

IN74HC132A Datasheet (202.41 KB)

Preview of IN74HC132A PDF
IN74HC132A Datasheet Preview Page 2 IN74HC132A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC132A

Manufacturer:

IK Semiconductor

File Size:

202.41 KB

Description:

Quad 2-input nand schmitt-trigger inverter.
