IN74HC151A Datasheet - IK Semiconductor

IN74HC151A 8-1 Data Selector/Multiplexer

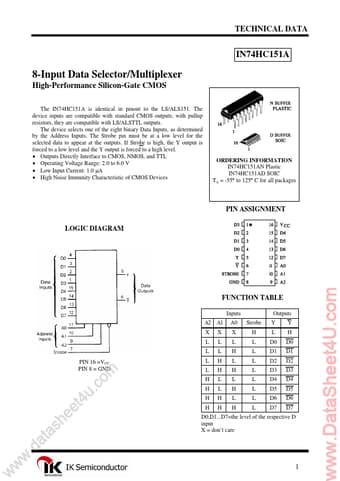

TECHNICAL DATA IN74HC151A 8-Input Data Selector/Multiplexer High-Performance Silicon-Gate CMOS The IN74HC151A is identical in pinout to the LS/ALS151. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. The device selects one of the eight binary Data Inputs, as determined by the Address Inputs. The Strobe pin must be at a low level for the selected data to appear at the outputs. If Strobe is high, the Y output is force.

IN74HC151A Datasheet (233.03 KB)

Preview of IN74HC151A PDF
IN74HC151A Datasheet Preview Page 2 IN74HC151A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC151A

Manufacturer:

IK Semiconductor

File Size:

233.03 KB

Description:

8-1 data selector/multiplexer.
