IN74HC153A Datasheet - IK Semiconductor

IN74HC153A Dual 4-1 Data Selector/Multiplexer

TECHNICAL DATA IN74HC153A Dual 4-Input Data Selector/Multiplexer High-Performance Silicon-Gate CMOS The IN74HC153A is identical in pinout to the LS/ALS153. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. The Address Inputs select one of four Data Inputs from each multiplexer. Each multiplexer has an active-low Strobe control and a noninverting output. Outputs Directly Interface to CMOS, NMOS, and TTL .

IN74HC153A Datasheet

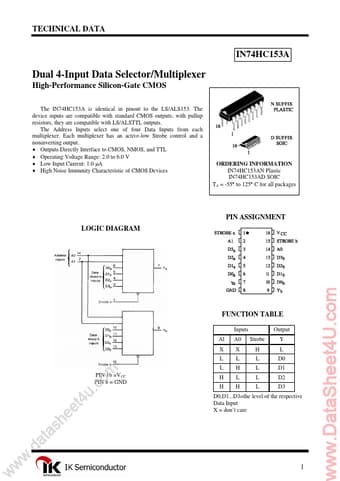

Preview of IN74HC153A PDF
IN74HC153A Datasheet Preview Page 2 IN74HC153A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC153A

Manufacturer:

IK Semiconductor

File Size:

229.69 KB

Description:

Dual 4-1 data selector/multiplexer.
