IN74HC154A 4-16 Decoder/Demultiplexer (3-State)

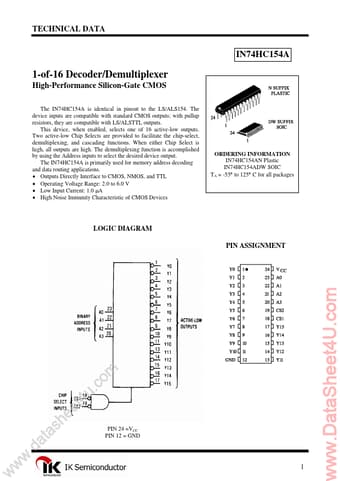

TECHNICAL DATA IN74HC154A 1-of-16 Decoder/Demultiplexer High-Performance Silicon-Gate CMOS The IN74HC154A is identical in pinout to the LS/ALS154. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device, when enabled, selects one of 16 active-low outputs. Two active-low Chip Selects are provided to facilitate the chip-select, demultiplexing, and cascading functions. When either Chip Select is high, all outputs .

IN74HC154A Datasheet (273.96 KB)
