IN74HC158A Datasheet - IK Semiconductor

IN74HC158A Quad 2-1 Data Selector/Multiplexer

TECHNICAL DATA IN74HC158A Quad 2-Input Data Selectors/Multiplexers High-Performance Silicon-Gate CMOS The IN74HC158A is identical in pinout to the LS/ALS158. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. This device routes 2 nibbles (A or B) to a single port (Y) as determined by the Select input. The data is presented at the outputs in invertered form. A high level on the Output Enable input sets all four Y outpu.

IN74HC158A Datasheet (217.75 KB)

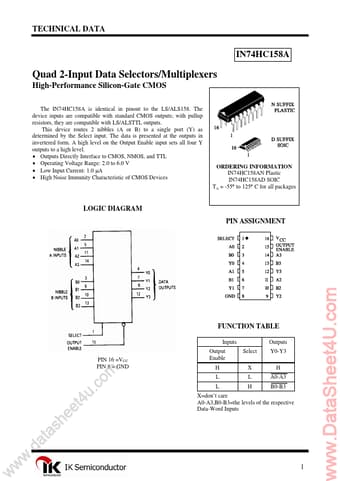

Preview of IN74HC158A PDF
IN74HC158A Datasheet Preview Page 2 IN74HC158A Datasheet Preview Page 3

Datasheet Details

Part number:

IN74HC158A

Manufacturer:

IK Semiconductor

File Size:

217.75 KB

Description:

Quad 2-1 data selector/multiplexer.
