IN74HC164A 8-Bit Serial-In Parallel-Out Shift Register

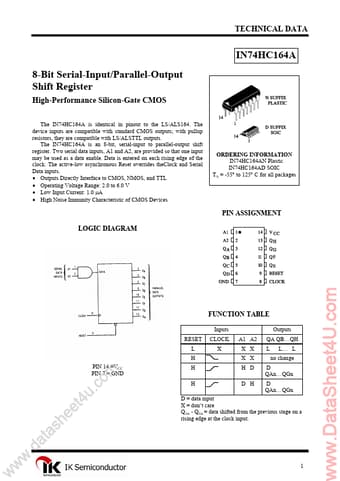

TECHNICAL DATA IN74HC164А 8-Bit Serial-Input/Parallel-Output Shift Register High-Performance Silicon-Gate CMOS The IN74HC164A is identical in pinout to the LS/ALS164. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. The IN74HC164A is an 8-bit, serial-input to parallel-output shift register. Two serial data inputs, A1 and A2, are provided so that one input may be used as a data enable. Data is entered on each rising e.

IN74HC164A_IKSemiconductor.pdf

IN74HC164A Datasheet Preview — Preview of IN74HC164A PDF

Datasheet Details

Part number:

IN74HC164A

Manufacturer:

IK Semiconductor

File Size:

317.21 KB

Description:

8-bit serial-in parallel-out shift register.
